lithium ion battery 12v 50ah deep cycle battery 12v 50ah battery
1. Built-in automatic protection for over-charge, over-discharge and over-temperature conditions
2. Intra-module balancing
3. Maintenance-free
4. Thousands of cycles, under normal conditions
5. Can be charged using most standard lead-acid chargers
Product Description:
| Battery Type | LiFePO4 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 50Ah |
| Internal Resistance | ≤20mΩ |
| Series & Parallel Application | up to 4 series 4 parallel connected application |
| Limited Charge Voltage | 14.6±0.2V |
| Floating Charge Voltage | 13.8±0.2V |
| Charge Method | CC/CV |
| Discharge Cut-off Voltage | 10.0V |
| Max. Charge Current | 25A |
| Max. Continuous Discharge Current (<30min) | 50A |
| Pulse Discharge Current (<3s) | 100A |
| Cycle Life | > 2000 cycles |
| Dimension | Length: 195±2mm |
| Width: 130±2mm |
| Height: 182±2mm |
| Weight | 6Kg |
| Operation Temperature Range | Charge: 0~45℃; |
| Discharge: -20~60℃ |
| Recommended operating temperature: 15℃~35℃ |
| Self-Discharge Rate | Residual capacity: ≤5%/month; |

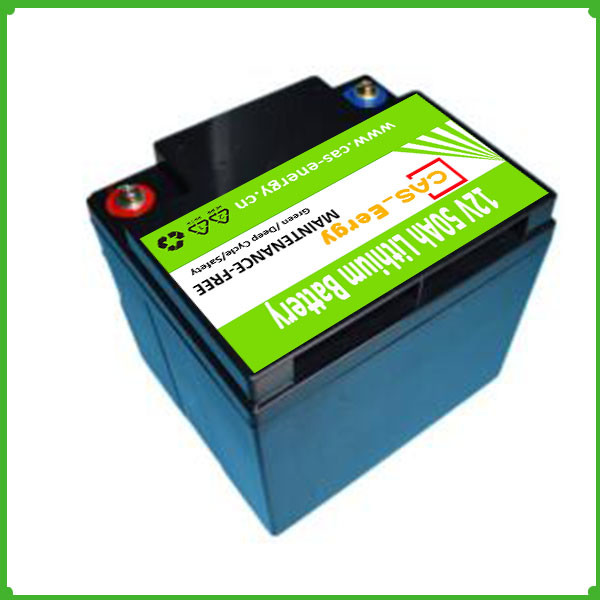

Product picture:

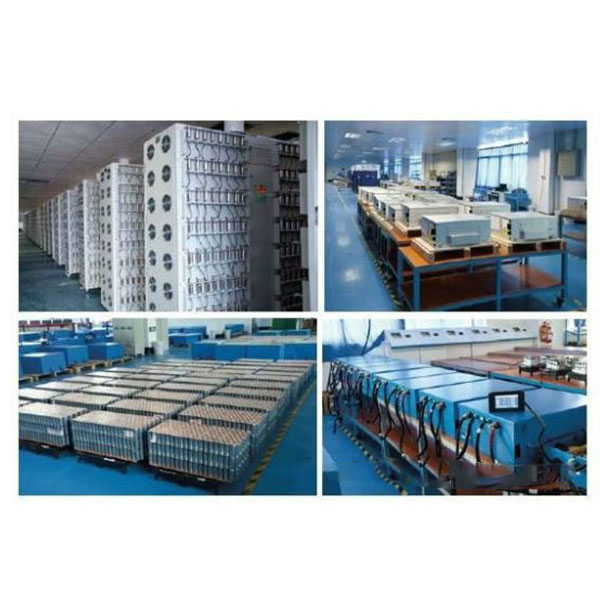

Workshop:
Application:
- Golf trolleys, Golf carts,
- UPS backup
- Fire alarm and security systems
- Telecommunication equipment
- Electric equipment and telemeter equipment
- Light equipment, dc 12v led lights
- Wireless lawn movers vacuum cleaner and washing machine
- Toys and consumer electronics
- Solar systems 12v
- Portable power tools measuring and medical equipment Portable video camera portable personal computer
- Garden lighting
- Sound systems
- And etc
Packaging & Shipping:
Matters needing attention
(1) Please check if spare parts are completed when open the package and read the operation manual carefully.
(2) Do not make the battery Short Circuit,do not over charge and discharge.
(3) Please charge the new battery to full capacity before discharge for the first use.
(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.
(5) Checking the voltage of battery, normally it is 12.8V-13.2V.
(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.
(7) Rivet or screw is used for battery connector.
(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.
(9) The charger used should be approved by our company in order to match with our lithium batteries.
(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.
Requirement for safety assurance
For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
|
|
